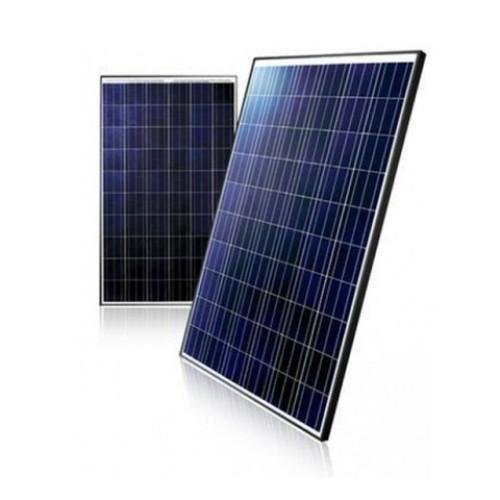

Amerisolar AS-6P30-255W Solar Panel Amerisolar AS-6P30-255W Solar Panel ideal for network connections isolated or solar systems. Amerisolar’s photovoltaic modules are designed for large electrical power requirements. With a 30-year warranty, AS-6P30 offers higher-powered, reliable performance for more Both on-grid and off-grid Solar projects. Key Features High module conversion efficiency up to 16.29% through superior manufacturing technology. Low degradation and excellent performance under high temperature and low light conditions. Robust aluminum frame Ensures the modules to withstand wind loads up to 2400Pa and snow loads up to 5400Pa. Positive power tolerance of 0 ~ 3%. High ammonia and salt mist resistance. Quality Certificates IEC61215, IEC61730, IEC62716, IEC61701, UL1703, CE, MCS, CEC, Israel Electric, Kemco ISO9001: 2008: Quality management system ISO14001: 2004: Environmental management system OHSAS18001: 2007 Occupational health and safety management system Features Maximum power: 255Wp Voltage at maximum power: 30,50 V Maximum current: 8.37 A Open circuit voltage: 38,10 V Short-circuit current: 8.83 A Dimensions: 1640 x 992 x 40 Weight: 18.5 Kg Efficiency 15.37% Electrical parameters at NIGHT: Nominal Power (Pmax) 186 W Open Circuit Voltage (VOC) 35.1 V Short Circuit Current (ISC) 7.15 A Voltage at Nominal Power (MPV) 27.8 V Current at Nominal Power (Imp) 6.70 A NIGHT: Irradiance 800W / m2, Ambient temperature 20 ° C, Wind speed 1 m / s Mechanical Characteristics Cell type Polycrystalline 156x156mm Number of cells 60 (6×10) Module dimension 1640x992x40mm Weight 18.5kg Front cover 3.2mm tempered low-iron glass Anodized aluminum alloy frame IP67 junction box, 6 diodes Cable 4mm2, 900mm Connector MC4 or MC4-compatible Standard packaging 26pcs / pallet Module quantity per container 728pcs / 40’HQ Temperature Characteristics Nominal Operating Cell Temperature (NOCT) 45 ° C ± 2 ° C Temperature Coefficients of Pmax -0.43% / ° C Temperature Coefficients of VOC -0.33% / ° C Temperature Coefficients of ISC 0.056% / ° C Maximum Ratings Operating Temperature -40 ° C to 85 ° C Maximum System Voltage 1000V DC Maximum Series Fuse Rating 15A 12 years product warranty 91.2% power guaranteed in the first 12 years 80.6% of guaranteed power for 30 years. Highly transparent solar glass of 3.2 mm. and anodized aluminum frame for a perfect stability and durability. Lamination at constant temperature (LTC) provides a perfect cure of the module avoiding the formation of bubbles. The distance between the edge of the frame and the cell have been optimized to ensure watertight seal and maximum reduction of module size TECHNICAL SPECIFICATIONS GENERAL Manufacturer Amerisolar Model AS-6P30-250W Material Polycrystalline Rated Power/Nominal Output 250 Wp Module Efficiency 15.37 % MECHANICAL DATA Cell size 156×156 mm2 Number of cells and connections 60 Length: 1640 mm Width: 992 mm Depth: 40 mm Weight: 18.5 kg
